This guide will walk you through managing wired client settings at the Access Point level. To learn how to manage wired clients on the network level, please refer to this article.
Configure Wired Client Settings for individual APs
When adding a new device, the network's wired clients settings will be applied by default. To override these settings, follow these steps:
- Log into the Plasma Cloud console;
- Select the Organisation and Network with the Access Point of interest from the top right menu;
- Navigate to Access Points in the main menu on the left;
- Click on the specific Access Point you wish to configure from the displayed table. This leads you to the individual Access Point settings page;

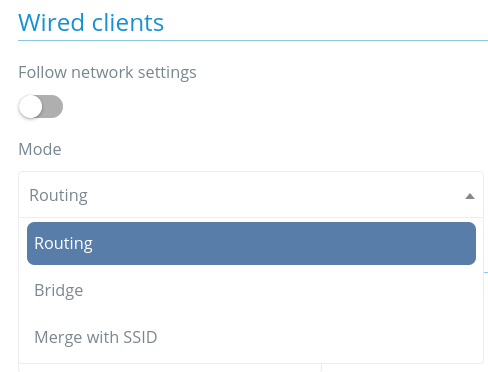

- Find the Wired Clients section;
- Disable the Follow network settings toggle;
- Choose the desired wired clients mode from the drop-down menu;
- Save your Changes.
To understand the difference between the wired clients modes (Routing, Bridge, Merge with SSID) and when each may be applicable, please see this article.
Merge with SSID mode
If you want to configure your Access Point to merge wired clients with an SSID, ensure the SSID intended for merging wired clients is assigned to your device.

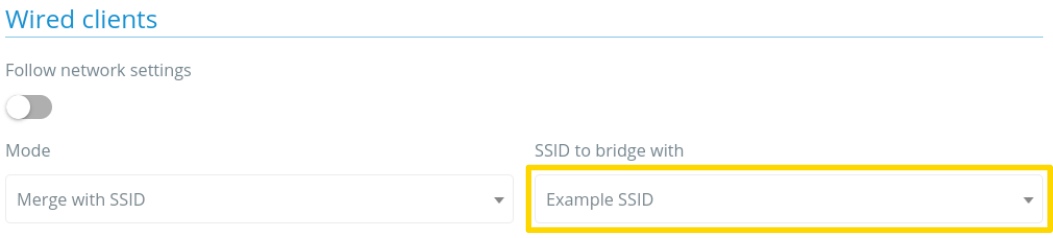

The highlighted drop-down only lists currently assigned SSIDs as options. In case your intended SSID is not shown, you need to

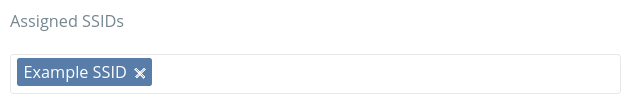

- Click on the Assigned SSID field and select your intended SSID from the drop-down menu;
- Go back to Wired clients section and select your intended SSID from the drop-down menu;
- Press Save.
