SFP transceiver errors indicate different types of problems, depending on where the failure occurs. The most common SFP errors are described below.

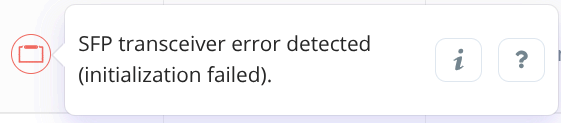

Init failed

The 'init failed' error indicates the Switch is unable to communicate with the SFP transceiver during the initialization phase.

What can cause an initialization failure?

• A damaged SFP transceiver
• A damaged or malfunctioning SFP slot
• An improperly seated SFP transceiver

What to do

1. Remove and reinsert the SFP transceiver.
2. Check whether the SFP transceiver is detected by the Switch.
3. Try the SFP  in another compatible slot, if available.
4. Try a known to be good SFP transceiver in the affected slot.

If a known to be good SFP transceiver works in the slot, the original SFP transceiver is likely faulty. If multiple SFP transceiver fail in the same slot, the SFP slot connectors may be blocked by dirt or damaged.

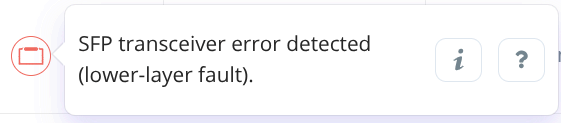

Lower layer fault

A Lower layer fault error indicates the connected SFP transceivers are unable to establish a stable connection.

This is a Layer 1 physical-link problem, rather than a network protocol or configuration problem.

What can cause a lower layer fault?

For an optical link to work correctly, the SFP transceivers must be compatible with each other and compatible with the Switches, routers or media converters they are installed in.

Using the same SFP model on both ends can help avoid compatibility problems, but it is not always sufficient. A transceiver may be supported by one device but not by the other.

Common causes include:

• Incompatible SFP transceivers
• Incorrect wavelength
• Unsupported speed
• Different or unsupported encoding
• Incompatible Fiber type
• Damaged or incorrectly connected Fiber
• Dirty Fiber connectors
• Poor optical signal quality
• An SFP type that is not supported by one of the connected devices

What to check

• Wavelength: The transmitting and receiving wavelengths must be compatible.
• Speed: Both devices must support the selected link speed.
• Encoding: The transceivers must use compatible signaling or encoding.
• Fiber type: The transceiver must be suitable for the connected Fiber.
• Device support: Verify that both devices support the specific SFP model or type.
• Fiber connection: Check that the Fiber is connected correctly and that the connectors are clean and undamaged.

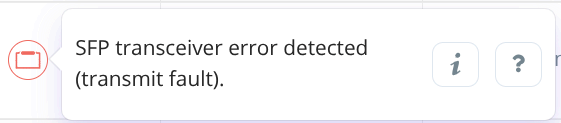

Tx fault

A Tx fault indicates the SFP transceiver module has detected a problem with its optical transmitter and cannot reliably generate the required transmit signal.

SFP transmitters can degrade over time. For example, degradation of the laser can increase the bias current required to maintain the optical signal. Eventually, the transmitter may no longer be able to operate within its required parameters, resulting in a Tx fault.

However, a Tx fault does not necessarily mean that the SFP transceiver itself is permanently defective. Environmental conditions, power problems, or optical issues can also contribute to transmitter failures.

What can cause an SFP Tx fault?

Common causes include:

• Thermal overload: High-density Switches can create localized areas of elevated temperature, causing the SFP transceiver to operate outside its recommended temperature range.
• Laser degradation: Optical transmitters can degrade over time, increasing the laser bias current required to maintain the signal.
• Power instability: Insufficient slot power or voltage fluctuations can prevent the transmitter from operating reliably.
• Fiber contamination: Dirty Fiber connectors can cause excessive optical reflection or signal loss, potentially destabilizing the transmitter.
• Signal integrity issues: High-speed technologies, particularly PAM4, are more sensitive to noise and signal-quality problems.

What to do

1. Check the SFP transceiver operating temperature.
2. Make sure the SFP transceiver is properly seated in the Switch slot.
3. Check the Fiber connectors and clean them if necessary.
4. Check the Fiber and the remote transceiver for possible signal-quality problems.
5. Replace the SFP with a known-good, compatible transceiver.
