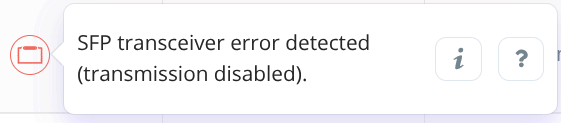

What does the SFP Tx failure warning mean?

An SFP Tx failure warning means that the SFP transceiver has detected a problem with its transmit (Tx) function.

When an SFP repeatedly fails to transmit a signal, it reports a Tx Failure status to the Switch. The Switch then resets the SFP transceiver, allowing it to initialize again and attempt to establish transmission.

The Tx Failure counter shows how many times the Switch has detected a Tx failure and reset the SFP.

A high or continuously increasing Tx Failure counter indicates that the problem is recurring. In many cases, the SFP transceiver may be faulty and need to be replaced. However, other factors—such as excessive temperature, unstable power, or problems with the fiber connection—can also cause Tx failures.

What can cause an SFP Tx failure?

Common causes include:

• Thermal overload: High-density Switches can create localized areas of elevated temperature ("heat islands"), causing the SFP to operate outside its recommended temperature range.
• Laser degradation: The optical transmitter can degrade over time, increasing the laser bias current required to maintain the signal.
• Power instability: Insufficient power or voltage fluctuations can prevent the SFP from operating reliably.
• Fiber contamination: Dust or contamination on the fiber connector can cause excessive optical reflection or signal loss, potentially destabilizing the transmitter.
• Signal integrity issues: High-speed optical technologies, particularly PAM4-based links, are more sensitive to noise and signal-quality problems.

What should I do if the Tx Failure counter is high?

If the counter is high or continues to increase:

1. Check the SFP's operating temperature.
2. Verify that the SFP is properly seated in the Switch.
3. Inspect and clean the fiber connectors.
4. Check the fiber and remote transceiver for possible signal-quality issues.
5. If the problem persists, replace the SFP with a known-good transceiver and check whether the Tx failures continue.

If the Tx Failure counter stops increasing after replacing the SFP, the original transceiver is likely faulty.
