Access Point Settings Tab

To go to the Access Point Settings tab, you need to:

1. Log into the Plasma Cloud console;
2. Select the Organisation and Network containing the device from top-right menu.
3. In the main menu on the left, navigate to Access Points.
4. Click on your device of interest in the table. This will take you to the Access Point Details page.

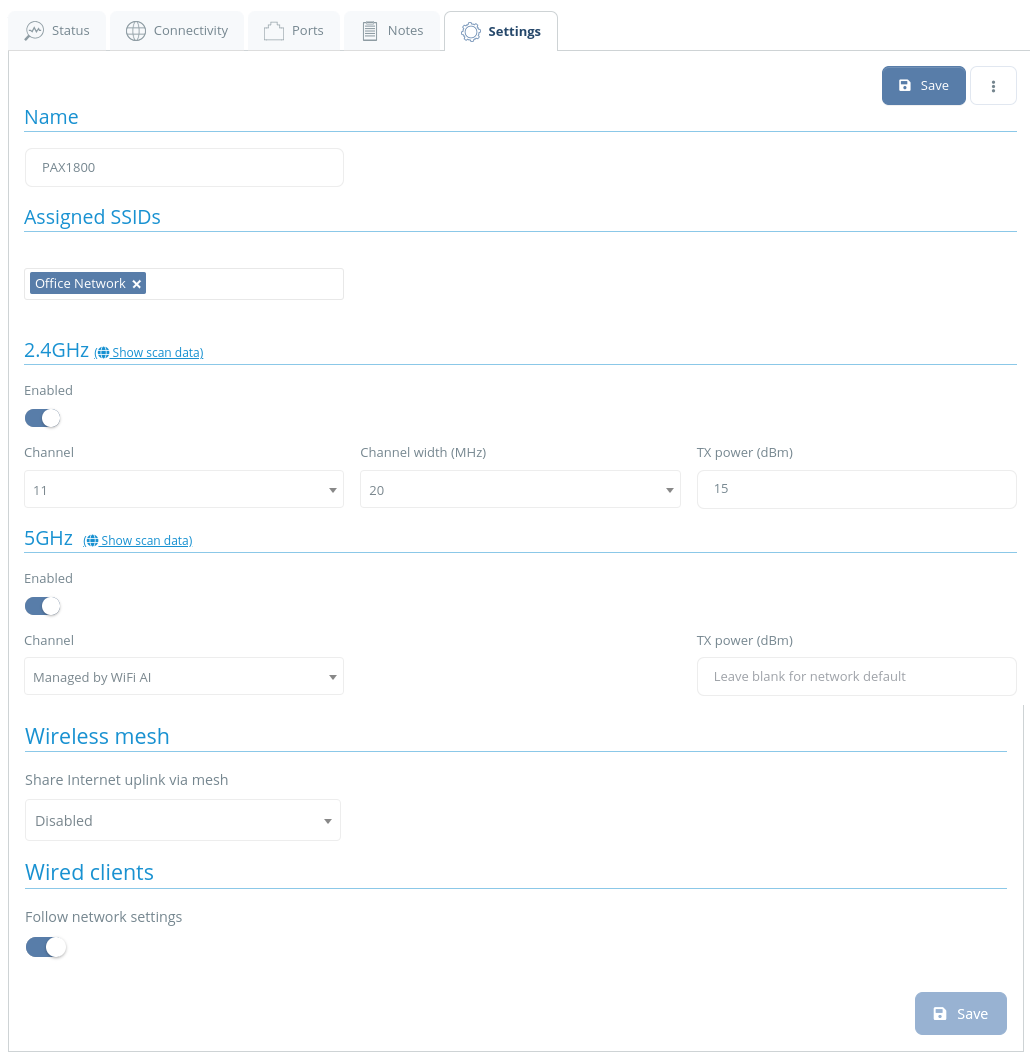

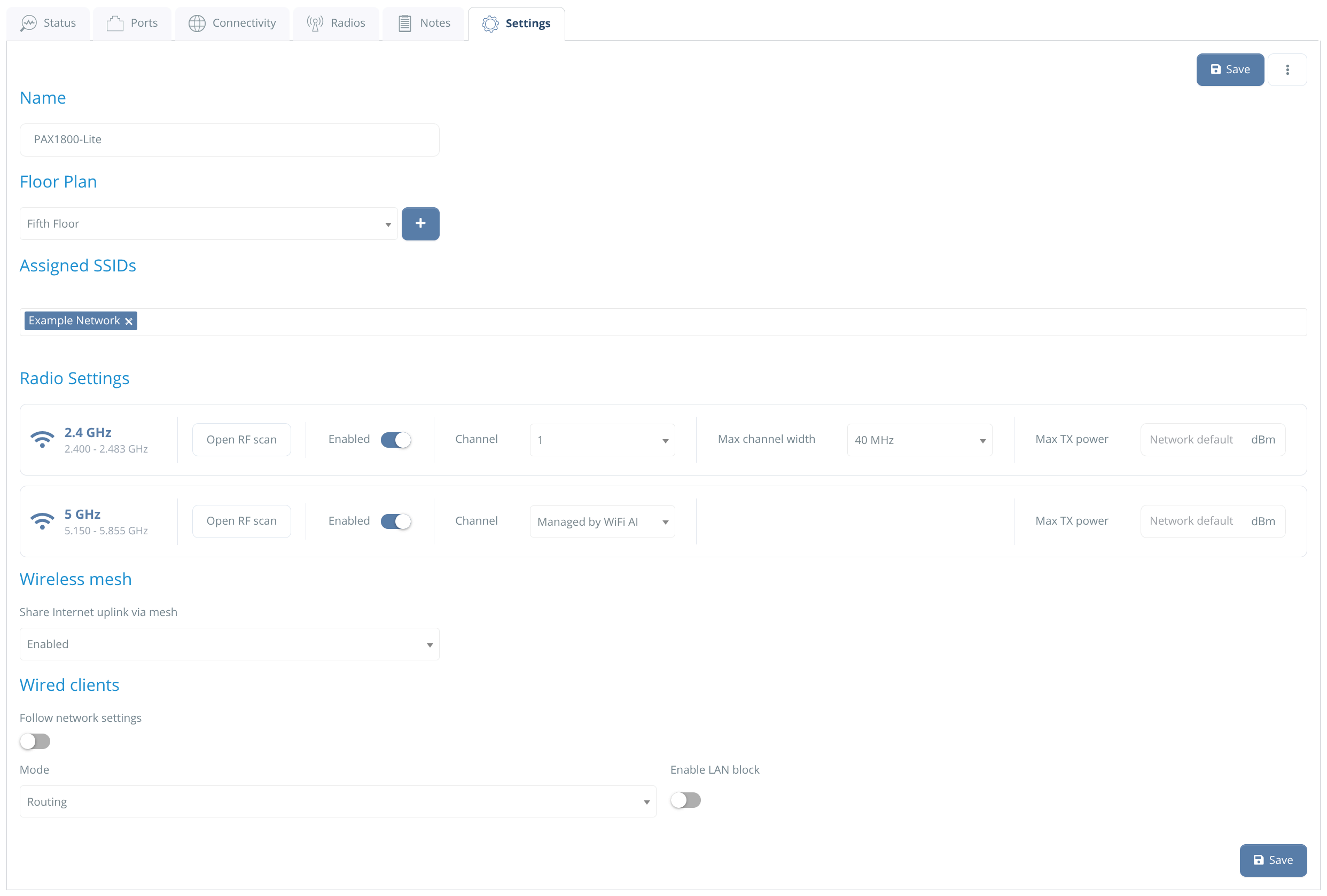

5. Locate the Settings tab below the network chart.

Name

View the name of your device. To edit the name, simply modify the text field and click Save.

Assigned SSIDs

Manage the SSIDs assigned to the selected device. For detailed instructions, refer to this article. To learn how to create a new SSID, see this article.

WiFi Radios (2.4 / 5 / 6 GHz)

Enable or disable WiFi radios, configure channels, and adjust channel width for each frequency band. Detailed guidance is available in this article.

Wireless Mesh

Wireless Mesh bridges gaps between non-wired Access Points by connecting them to the nearest wired Access Point. For more information, see this article.

Wired clients

Configure wired clients using these modes: Routing, Bridge, or Merge with SSID. Learn more about each mode in this article, or see this article to get instructions on how to manage wired client settings.

Settings History

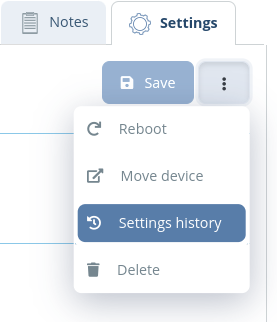

Click the three-dot button at the end of the Settings tab to view the device Settings History. For details, please refer to this article.
