Client Connectivity Tab

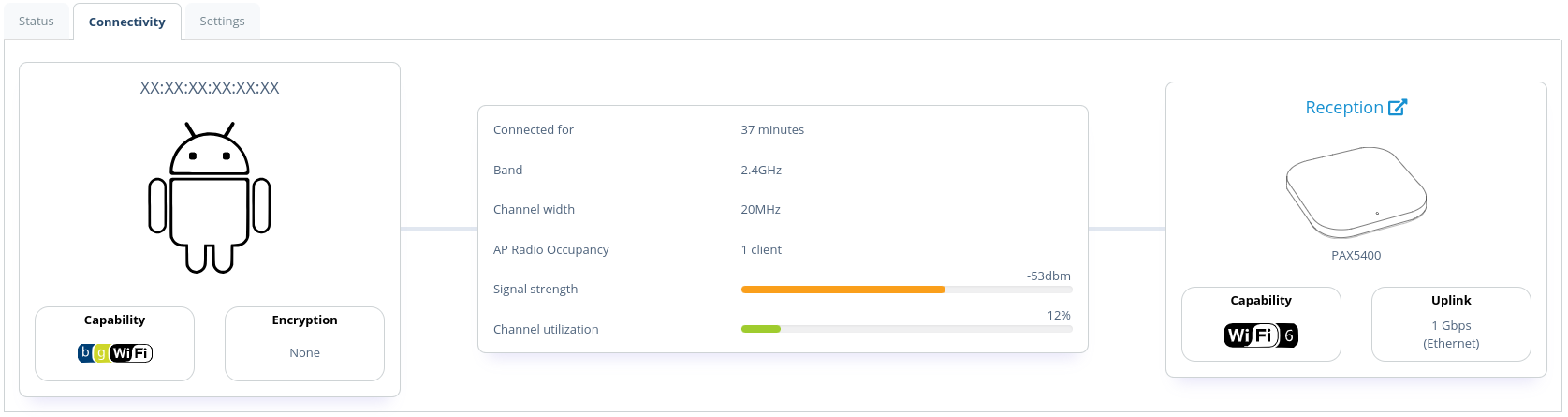

The Client Connectivity tab reveals detailed information about the client - Access Point connection. It is located on the Client Details page.

Client Widget

The left widget displays client details such as name, logo of its operating system, capability (used WiFi standard), and encryption standard (WPA2 / WPA3 / none).

Connection Status Widget

The center widget contains information about the connection status. It highlights:

• Last seen: the last time the WiFi client was active (for offline clients).
• Connected for: the amount of time the client has been connected to this Access Point.
• Band: the band on which the client is connected (2.4 GHz, 5 GHz, 6 GHz),.
• Channel width: the width of the WiFi channel used by the client.
• Estimated throughput: the estimated data throughput available to the client (requires v4.2 or later).
• AP radio occupancy: the number of clients currently connected to the same WiFi radio.
• Signal strength: the strength of the WiFi signal between the client and the Access Point.
• Channel utilization: how much of the channel's capacity is currently being used.

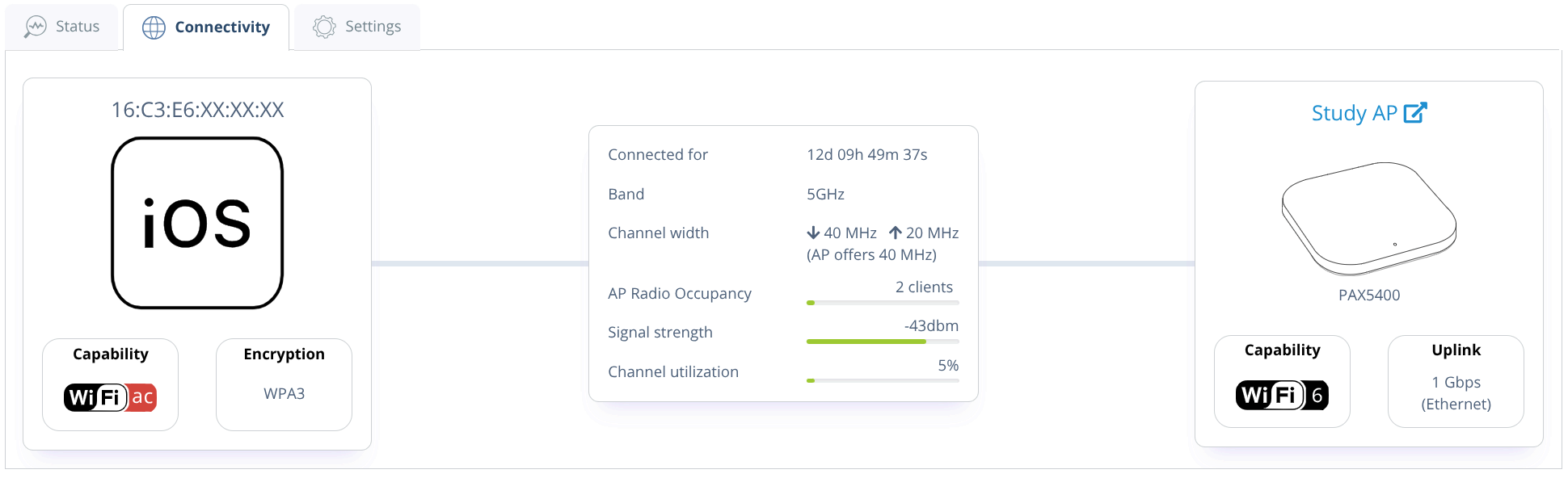

Online client and online Access Point

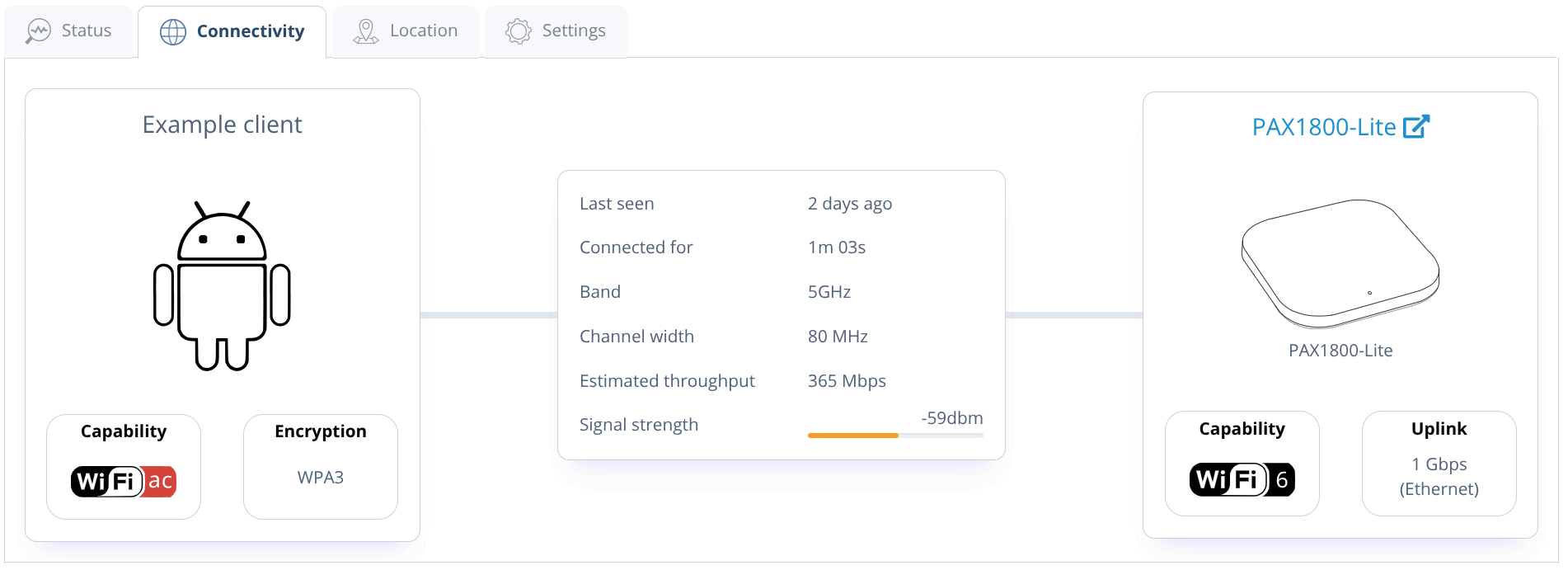

Offline client and offline Access Point

Access Point Widget

The right widget contains the name of the Access Point the selected client is connected to. Below the name is a model icon depicting the device. The capability (used WiFi standard), and uplink speed is also shown.

Clicking on the Access Point name leads directly to the Access Point Details page for easy configuration.
